Product Description

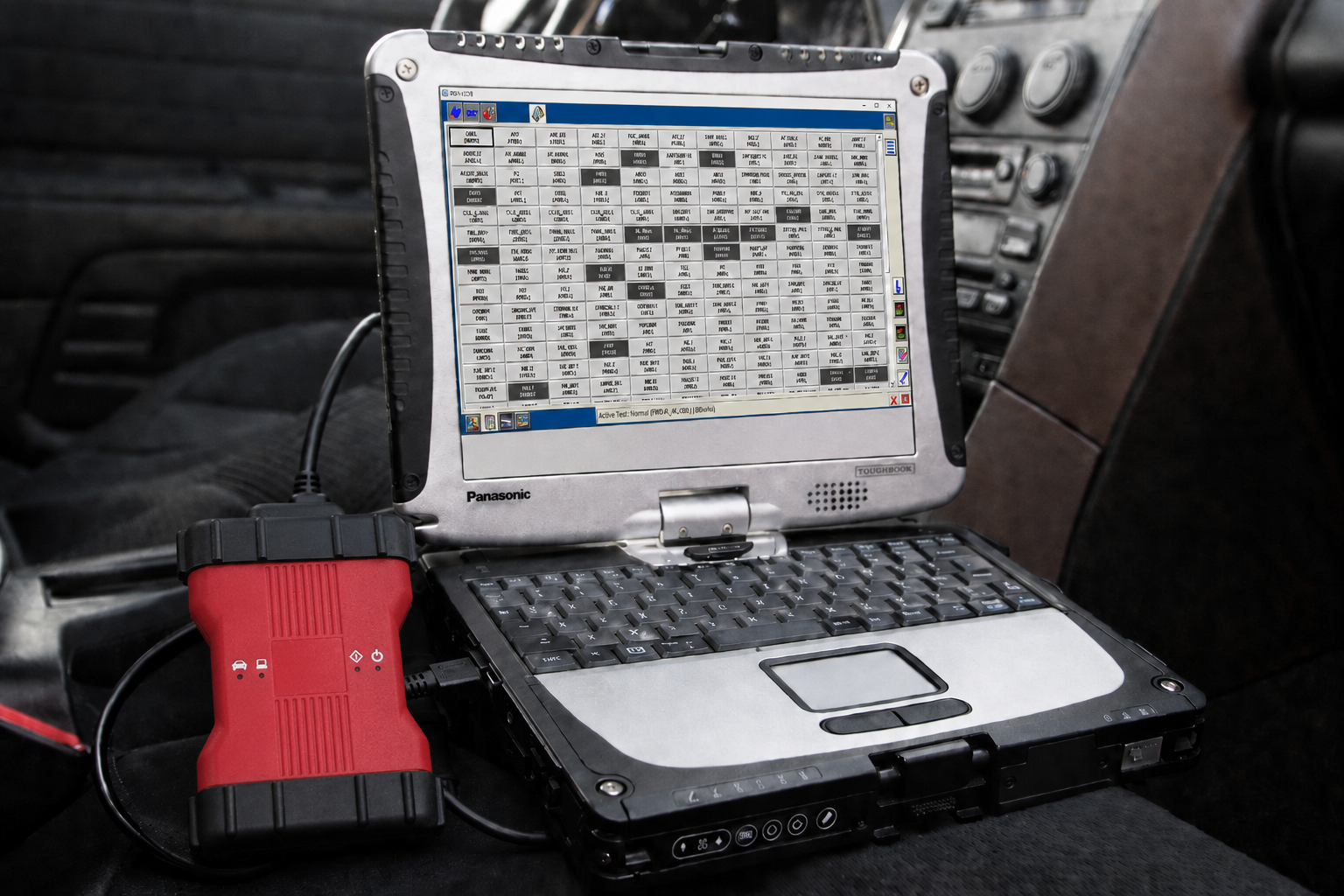

Ford VCM Diagnostic Laptop Scanner 2025
Pre-Installed and Ready to Use on a Panasonic Toughbook CF-19 with 8GB RAM
This Ford VCM diagnostic package is a professionally configured solution designed for automotive technicians, mobile mechanics, fleet operators, and repair shops that need advanced Ford, Lincoln, and Mercury diagnostic capabilities.
The included Panasonic Toughbook CF-19 is configured with Ford diagnostic software and tested with the supplied VCM interface before shipping. The complete package arrives ready for initial setup and vehicle diagnostics without the inconvenience of locating drivers, installing communication software, or configuring the interface yourself.
Compatibility Notice
Designed for diagnostic coverage of compatible:
- Ford vehicles from 1996 to present
- Lincoln vehicles from 1996 to present
- Mercury vehicles from 1996 through the end of Mercury production
- Select Mazda vehicles that use compatible Ford-related systems
Important: Ford uses different diagnostic platforms depending on the vehicle and model year.
- IDS: Primarily supports 1996 through select 2018 Ford, Lincoln, and Mercury vehicles.
- FDRS/FJDS: Required for many 2018 and newer Ford and Lincoln vehicles.
- Coverage, available tests, programming functions, and online requirements vary by model, year, engine, module, and vehicle configuration.
Contact us with the vehicle identification number before ordering when coverage for a specific vehicle or function must be confirmed.
Why Choose the Complete Package?
Purchasing a VCM interface separately can result in driver problems, communication errors, software configuration issues, and incompatibility between the interface and computer.
This complete package eliminates most initial setup problems.
✔ Ford diagnostic software installed
✔ VCM communication software configured
✔ Interface drivers installed
✔ Laptop and diagnostic interface tested together
✔ USB connection between the VCM and laptop
✔ Rugged Panasonic Toughbook included
✔ Ready for initial vehicle diagnostics upon arrival
This package is also more convenient and cost-effective than purchasing and configuring each component separately.
Installed Diagnostic Software
Depending on the selected configuration, the laptop may include:
- Ford Integrated Diagnostic Software — IDS
- Ford Diagnostic and Repair System — FDRS
- Ford J2534 Diagnostic Software — FJDS
- Ford VCM Manager
- Required VCM communication drivers
Software version: 2025 diagnostic configuration
System status: Installed, configured, and tested
Connection methods: USB and supported network connections, depending on the interface version
Some advanced functions require an active Ford Motorcraft subscription, internet access, security authorization, or additional credentials. Subscriptions and manufacturer accounts are not included unless specifically stated in the order.
Supported Communication Protocols
The Ford VCM interface supports major Ford vehicle communication systems, including:
- J1850 PWM
- ISO 9141
- ISO 14230
- High-Speed CAN
- Medium-Speed CAN
- Low-Speed CAN
- UDS
- J2534 Pass-Thru communication
- Manufacturer-specific Ford communication protocols
Protocol availability depends on the vehicle, model year, and installed modules.
Ford Vehicle Coverage
Compatible Ford models may include:
Ford Cars
- Aspire
- C-MAX
- C-MAX Energi
- C-MAX Hybrid
- Contour
- Crown Victoria
- Escort
- Fiesta
- Five Hundred
- Focus
- Focus Electric
- Focus RS
- Focus ST
- Ford GT
- Fusion
- Fusion Energi
- Fusion Hybrid
- Mustang
- Mustang Mach-E
- Probe
- Taurus
- Taurus SHO
- Tempo
- Thunderbird
Ford SUVs and Crossovers
- Bronco
- Bronco Sport
- EcoSport
- Edge
- Escape
- Escape Hybrid
- Escape Plug-In Hybrid
- Excursion
- Expedition
- Explorer
- Explorer Sport Trac
- Flex
- Freestyle
Ford Pickup Trucks
- F-150
- F-150 Heritage
- F-150 Lightning
- F-250
- F-350
- F-450
- F-550
- F-600
- F-650
- F-750
- Maverick
- Ranger
- Super Duty
Ford Vans and Commercial Vehicles
- Aerostar
- E-150
- E-250
- E-350
- E-450
- Econoline
- E-Series
- E-Transit
- Transit
- Transit Connect
- Transit Cargo Van
- Transit Passenger Van
- Transit Cutaway
- Transit Chassis Cab
Additional Ford Vehicles
- Freestar
- Galaxy
- Ka
- Mondeo
- S-MAX
- Windstar
Coverage of non-North-American Ford vehicles varies and should be verified before ordering.
Lincoln Vehicle Coverage
Compatible Lincoln models may include:
- Aviator
- Blackwood
- Continental
- Corsair
- LS
- Mark LT
- Mark VIII
- MKC
- MKS
- MKT
- MKX
- MKZ
- MKZ Hybrid
- Nautilus
- Navigator
- Town Car
- Zephyr
Mercury Vehicle Coverage
Compatible Mercury models may include:
- Cougar
- Grand Marquis
- Marauder
- Mariner
- Mariner Hybrid
- Milan
- Milan Hybrid
- Montego
- Monterey
- Mountaineer
- Mystique
- Sable
- Topaz
- Tracer
- Villager
Select Mazda Vehicle Coverage
Certain Mazda vehicles share electronic systems or platforms with Ford vehicles. Depending on the model, year, software configuration, and installed modules, compatible models may include:
- Mazda2
- Mazda3
- Mazda5
- Mazda6
- B-Series Pickup
- CX-7
- CX-9
- MPV
- MX-5 Miata
- Tribute
- Tribute Hybrid
Mazda notice: Mazda coverage is limited and is not guaranteed for every model, year, module, or diagnostic function. Contact us with the VIN before purchasing specifically for Mazda diagnostics.
Diagnostic Capabilities
Available functions may include:
- Automatic vehicle identification
- Manual vehicle identification
- Complete system scan
- Read diagnostic trouble codes
- Clear diagnostic trouble codes
- View live sensor and module data
- Record and replay live data
- Access powertrain modules
- Access transmission modules
- Access ABS and brake modules
- Access airbag and restraint modules
- Access body control modules
- Access instrument cluster modules
- Access four-wheel-drive modules
- Access steering and suspension modules
- Access climate-control modules
- Access infotainment and communication modules
- Perform actuator and output tests
- Run active commands
- Perform service resets
- Electronic parking-brake service
- ABS bleeding procedures
- Injector coding and calibration
- Diesel particulate filter service procedures
- Diesel particulate filter regeneration
- Fuel-system service procedures
- Transmission adaptive learning
- Throttle and idle relearn
- Steering-angle calibration
- Battery-monitoring-system reset
- Tire-pressure-monitoring-system procedures
- Module initialization
- Programmable parameter installation
- Module configuration
- Key and immobilizer procedures
- J2534 Pass-Thru programming
Available capabilities depend on the vehicle, model year, installed modules, software platform, subscription status, and security-access requirements.
Programming and Security Functions
Certain programming and security procedures may require:
- An active Ford Motorcraft subscription
- A stable internet connection
- Ford or Motorcraft account credentials
- Motorcraft Service Programming access
- Ford security-professional authorization
- NASTF credentials
- Vehicle security credentials
- A battery-maintenance power supply
- Additional manufacturer approval
Online subscriptions, paid credentials, programming files, security authorization, and third-party services are not included unless specifically stated.
Ford VCM Interface Overview
The Ford Vehicle Communication Module acts as the communication bridge between the vehicle and the Panasonic Toughbook.
The interface:
- Connects to compatible vehicles through the diagnostic connector
- Connects to the Toughbook through USB
- Communicates with Ford diagnostic software
- Supports module scanning and vehicle identification
- Supports active tests and service functions
- Supports J2534 Pass-Thru functions when applicable
- Works with IDS and other compatible Ford diagnostic platforms
- Supports both older and newer Ford communication systems within applicable coverage limits
For the most reliable connection, use the included USB cable when diagnosing or programming vehicles.
Panasonic Toughbook CF-19 Specifications
Panasonic Toughbook CF-19 — Refurbished/Used
- Processor: Intel Core i5
- Memory: 8GB RAM
- Display: 10.4-inch touchscreen
- Screen design: Sunlight-readable
- Construction: Fully rugged
- Design: Compact convertible laptop
- Condition: Refurbished or used
- Testing: Fully tested and operational
- Software: Ford diagnostic system installed
- Intended use: Automotive shops, fleets, roadside service, and mobile diagnostics
The laptop may show normal cosmetic wear, including scratches, scuffs, marks, or signs of previous use. These cosmetic imperfections do not affect its tested functionality.
Package Contents
✔ 1 × Ford VCM main diagnostic interface
✔ 1 × OBD-II vehicle diagnostic cable
✔ 1 × USB communication cable
✔ 1 × Panasonic Toughbook CF-19
✔ Ford diagnostic software configuration
✔ Required interface drivers and communication software
✔ Compatible Toughbook AC charger
Important Notes
- This is professional diagnostic equipment intended for trained technicians.
- Exact coverage depends on the vehicle identification number, model year, engine, transmission, modules, and software platform.
- IDS alone does not provide complete coverage for every present-day Ford or Lincoln vehicle.
- Many 2018 and newer vehicles require FDRS or FJDS.
- Manufacturer subscriptions may be required for programming, calibration downloads, security access, and certain online functions.
- Do not interrupt power or communication during ECU programming.
- Always connect an approved battery-maintenance power supply before module programming.
- Software updates should only be performed when compatible with the supplied hardware and configuration.
- Vehicle brands and model names are used only to identify compatibility. This product is not manufactured, sponsored, or endorsed by Ford Motor Company, Lincoln, Mercury, or Mazda.
Ready for Professional Diagnostics
This complete Ford VCM diagnostic laptop package combines a rugged Panasonic Toughbook, a compatible vehicle communication interface, and professionally configured diagnostic software in one convenient system.
Connect the VCM to the vehicle, connect the USB cable to the Toughbook, open the appropriate diagnostic application, and begin diagnosing compatible Ford, Lincoln, Mercury, and select Mazda vehicles.
